DEDAKJ

Instruction Manual of Household Oxygen Concentrator

Model: DE-C1L







CONTENTS

Precautions

Working Principle

Product Description

List of Attachments

Technical Specifications

External View

Operation Steps

Instructions for the Panel

Instructions for the Remote Control

Specific Functions

Maintenance and Repair

Trouble Shooting

Other Matters





1,Precautions

Warning: This is not a medical device and is not considered life-sup
port or life-sustaining equipment.

Warning signs on the product are designed to help users understand and
use this product correctly to prevent damage and a property loss.The
main warning signs and meanings are as follows:

▲The machine shall be placed indoors. Keep the room well-ventilated
and avoid direct sunlight. Keep the product more than 30 meters away
from the walls and other objects.
▲Do not place miscellaneous items and liquid containers on the machine
case.
▲It is prohibited to stack sundries at the ventilation hole on the back of
the machine to prevent clogging of intake and exhaust, which may lead to
excessive temperature and thus cause improper shutdown or a decrease
in oxygen concentration.
▲To avoid the machine being interfered by strong electromagnetic
environment or interfering with other electrical appliances, please keep it
at least 3 meters away from other household appliances when using.
▲Do not place the machine upside down or laid it horizontally.
▲If the voltage is unstable and exceeds the range of 220±15V/110±10V,
please connect the voltage regulator before use.
▲Please use a safe and qualified socket and a terminal block with safety
electrician certification.
▲Oxygen is a combustion-supporting gas. Therefore, when using the
machine,do not smoke and keep away from the fire source to avoid a fire
hazard.
▲Do not turn on and off the machine too often. Turn off the machine for
3-5 minutes before restarting to maintain the normal service life of the
machine.
▲No oil or greasy substance should be used in any part of the machine.
▲Do not use the machine without an air filter.
▲Do not bend the oxygen-inhalation tube when using the machine,
otherwise, it will affect the normal output of oxygen.
▲Unauthorized personnel should not disassemble the cover.
▲Do not bend the oxygen-inhalation tube when using The machine
otherwise it will affect the normal output of oxygen.
▲Unauthorized personnel should not disassemble the cover.



2. Working Principle

Air enters the compressor after being filtered through the inlet filter device,
and is compressed into the molecular-sieve tower for oxygen-nitrogen
separation. Oxygen passes through the molecular-sieve tower and enters
the fine sieve tower, while nitrogen is adsorbed by the molecular sieve
and discharged into the atmosphere through the separation valve. With
the increase of oxygen concentration in the fine sieve tower, oxygen is
finally delivered to the user through the oxygen delivery pipe under the
control of the electronic flow control valve.

3.Product Description

This oxygn concentrator is applicable to AC 230V/50Hz(110V/60Hz) voltage. It is
equipped with a pure copper oil-free compressor and a high-quality
molecular sieve. It uses air as raw material to produce high-purity oxygen
through a new Pressure Swing Adsorption method (PSA) at room
temperature, which can be used for household supplementary oxygen
absorption.

The product is designed according to a standard higher than the standard
for household appliances. It is fitted with a large clear LED display screen.
With intelligent chips controlling the circuit, the machine has automatic
fault alarm function, timing function and overheating circuit protection
function. When the working temperature of the compressor is too high, it
will automatically stop working to better protect the safety of the compres
sor and the whole machine.

This product is easy to operate, lightweight and portable. It is not only
suitable for home use, but also can be used in a car by using the automo
bile power supply.Suitable for household oxygen supplement.





4.List of Attachments

Main machine X1

Oxygen inhaler kit X1

Parts for nebulization (DH22-C1L model only) X1

Remote control (DH22-C1L model only) X1

Instruction manual X1

Certificate of Conformity (attached to the manual) X1

Power cord X1

After unpacking, please first check whether the appearance of the product
is intact. Then count the items in the package one by one according to the
list of attachments above. In case of any omission, please contact the
after-sales customer service





5.Technical Specifications

Product name: Oxygen Concentrator Model: DH22-C1L

Oxygen production method: Pressure Swing Adsorption method (PSA)

Rated voltage: AC230V/50Hz; AC110V/60Hz

Input power: 120VA

Oxygen flow rate: 1-7L/min adjustable

Oxygen concentration: 30-93%

Oxygen output pressure: 20-70kPa

Carbon dioxide: Qualified according to the specified test

Carbon monoxide: Qualified according to the specified test

PH.: Qualified according to the specified test

Morphological identification: Colorless and odorless combustive gas

Operating Time: Maximum 720 minutes

Atomization rate: ≥0.2mL/min(DH22-C1L model only)

Operating noise: ≤42dB(A weighting)

Electrical classification: Class II

Product size: 204x214x280mm

Net weight: 5kg

Normal working conditions Ambient temperature: 5℃~40℃

Relative humidity: ≤80%RH

Atmospheric pressure: 86kPa-106kPa

※ When the temperature is lower than 5 ℃, the equipment shall be

placed under normal working conditions for more than four hours before use.

Transportation and storage conditions Ambient temperature: -20℃~60℃

Relative humidity: <93%RH

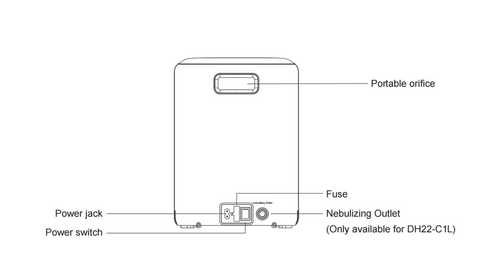

6.External view

7.Steps for using

①Connecting the power cord.

Insert the output terminal of the power cord into the machine power port first, in the way shown on the left figureand then insert the other terminal of the power cord into the socket .

②Insert the large diameter end of the oxygen suction pipe into the "oxygen outlet" output port of the host.

③Connecting the atomization tube.

(DH22-C1L only) as shown in the figure,connecting the atomizer to the output port of “atomization port”, and adjusting it to the right position, then wear it well.

④Wearing the oxygen inhaler

Wearing the oxygen inhaler as shown in the figure. When using a Nasal cannulas, aligning the two outlet holes with the nostril and tighten the rubber ring.

⑤Starting the oxygen generator

Turn on the “power switch”, touch the “ON/ OFF” button, the machine starts to produce oxygen, then you can inhale.

※Please adjust the oxygen concentration to the appropriate gear according to your own conditions. The recommended oxygen concentration: 70%~90% for special people (if there is no doctor’s advice, please do not inhale high concentration of oxygen); 50%~70% for the elderly and pregnant women; 30%~50% for office workers and students, or please consult a physician.

⑥Check the “air filter”

Open the air inlet cover and check that the "air filter is in place and clean.



8.Panel display/operating instructions

Description of the display



Function button

Turn on the power switch, the display shows the accumulated time and
enters the standby state.



ON/OFF

Gently touch the "ON/OFF" key, and the machine will enter the oxygen
making operation. At this time, the oxygen concentration value of the
display screen gradually rises to the corresponding value of the flow gear.



Flow button

Touching the “flow” button to adjust the oxygen concentration to the
corresponding level; the greater the flow of gas, the lower the oxygen
concentration. Levels: 1 liter, 2 liters, 3 liters, 4 liters, 5 liters, 6 liters, 7
liters. Seven levels of flow rate adjustment correspond to the oxygen
concentration of 93%, 60%, 45%, 40%, 35%, 30%, 28%. The default flow
rate value is 1L in the power off state; the flow rate value will retain the set



"Timing" button

Touch the "Timing button" to adjust the timing. Each time you press, the
duration increases by 30 minutes; the maximum duration is 720 minutes.
After 3 seconds of no operation, the timer starts to count down.
"Timing" button on remote control: The duration increases or decreases
by 30minutes after each press.



9.Instructions for the Remote Control

（Only for DH22-C1L model）

1. Turn on/off
2. Flow plus
3. Flow minus
4. Timing plus
5. Timing minus
6. Sleep mode
7. One click for help



Sleep mode

Press "SLEEP" when in the working state, the icon will flash 3 times, and
the display will enter sleep mode and shut off. Press any function key on
the remote control or on the panel to wake up the display.



SOS voice

Press the "SOS" button when in the standby or working state, there will be
a voice broadcast of "I need help" to help the user ask for help. The voice
will not stop until you press the "SOS" button again.

※Operation of the rest buttons are the same as the corresponding
function buttons on the host machine.





10.Specific Functions

Power saving mode

In the working state, the display, in the absence of operation for a minute,
will enter the power saving mode with the display brightness reduced,
making your life more eco-friendly.



Sleep mode (Only for DH22-C1L model)

In the working state, press the "sleep mode" button on the remote control,
the display will shut off to create a better sleeping environment for you



Cumulative timing

The machine is designed with the function of recording the total running
time. After working for one hour, the cumulative time value on the panel
will increase by "1".



Self-checking function

This machine has a self-checking function. It helps you find out where and
the fault is.
Fault detection of cooling fan: If the cooling fan fails during the use of the
machine, the display screen will display the fault code "E1", accompanied
by a buzzer alarm.



SOS voice (DH22-C1L model only)

Press to broadcast "I need help" , which will not stop until you press the
button again, to help the user ask for help.
※To use this function, please keep the host machine powered on and the
remote control fully charged.

1. Use of atomization function (DH22-C1L model)Unscrew the nut on atomizing port anticlockwise before starting the machine.
2. Connect one terminal of the Atomizing tube to the atomizing port.Please use it as needed or under the guidance of a professional doctor,and wear it as required.
3. Turn on the machine, press “ON/OFF” and confirm the gear is set to 1L, and then the oxygen machine will be switched to atomization purpose.

※When the atomization is finished, press "ON/OFF" key to shut down the
machine. Remove the atomizer connecting pipe and install the atomiza
tion port nut back in place and tighten it.

11. Maintenance and Repair



Clean the shell
The shell surface should be cleaned at least once a month. Cut off the
power supply and wipe it with a clean, soft, slightly wet cloth soaked in
disinfectant. Prevent the liquid from seeping into the interior of the
machine.

Clean or replace filter and filter pad
The white air filter at the back of the machine can reduce noise, keep the
dust out and purify air. Timely cleaning and replacement of the filter are of
great importance to protect the compressor and molecular sieve and
prolong the service life of the machine. So please clean or replace it in
time.

Do not operate the oxygen concentrator when the filter and filter pad
are not installed or are wet, which could cause permanent damage to the
machine.

Generally, filters and filter pads shall be cleaned or replaced every 100
hours

▲Disassembly: Pull out the air inlet cover outward from the back of the
machine to remove the filter.
Whether to clean or replace the filter and filter cotton shall be determined
according to the actual use conditions. If the filter is dirty or clogged, it
should be cleaned or replaced immediately regardless of the using time.
Note: Filters and filter pads are consumables and need to be replaced
regularly.

▲ Cleaning: Clean with diluted detergent first and rinse with water. Install
it on the machine after it is completely dry.
Clean the oxygen inhaler and atomization components
Cleaning should be done after each use. The nasal suction heads on the
nasal cannula should be cleaned and disinfected after each use. Soak in
5% potassium permanganate solution for 5 minutes, and then clean it with
clean water; or wipe it with alcohol.

Fuse replacement
Unplug the power, use a slot screwdriver to pry open the fuse cap (as
shown in the diagram), remove the invalid glass fuse, and then install a
new one. Put the fuse cover back in place and tighten it.

Long-term idle
Make the following preparations if the machine shall be in long-term idle.

1. Cut off the power supply and put away the power cord.
2. Store the machine in a dry environment at room temperature. Do not bend the tube.
3. Avoid direct sunlight and pollution.
4. Place the machine out of reach of infants and children.

Make the following preparations before using the machine which has been in long-term idle.

1. Check the power cord for normal use.
2. Clean the oxygen tube and inhaler to avoid clogging or bending.





12. Trouble Shooting

※If the machine does not operate normally after following the above
methods, please call the customer service hotline for advice. Do not
disassemble the machine.





13.Other matters

▲The production date is seen as the product label for details. the normal
term is five years (not including Consumables, such as atomization
accessories, oxygen tubes, etc.).

▲The disposal of wastes shall be in accordance with the relevant laws
and regulations of the state or local governments.

▲The illustrations in this user’s manual and other printed matter are
schematic drawings, please the material object shall prevail.

▲The company reserves the right to change the technology and appearance of the products. Please understand if there is any change without
notice!





DEDAKJ Oxygen Concentrator

Official Site:

https://dedakjoxygenconcentrators.com/







DEDAKJ Oxygen Concentrator
