Parameters：

Powerful 1-10L and 1-20 LPM adjustable Continuous Flow Stationary Oxygen Concentrators Medical Oxygen Therapy for 72 Hours, Support Whole Night Working.



Oxygen Generator Model	Powerful medical oxygen concentrator for oxygen therapy

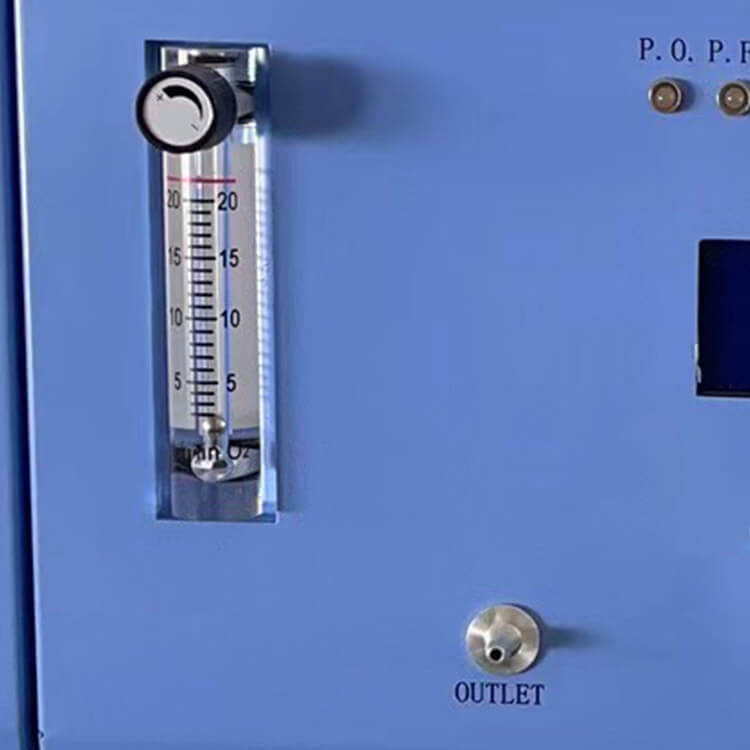

Oxygen Flow Rate	1-20 ltr adjustable
Oxygen Generation Method	PSA (Pressure Swing Adsorption)
Continuous Flow Rate	Yes, 1-20 LPM adjustable

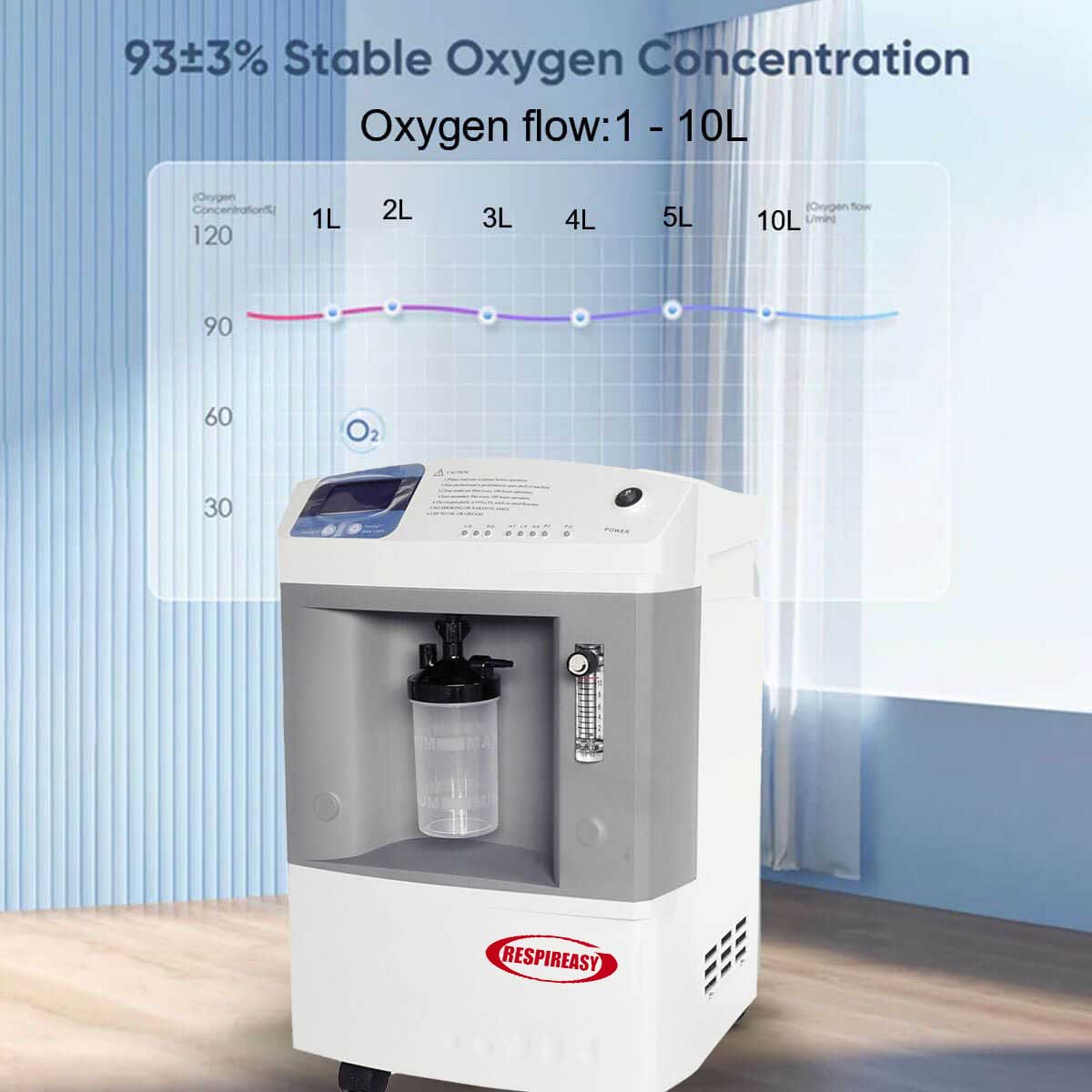

Oxygen Purity	93±3% high concentration, medical standard
Oxygen Outlet Pressure	20liter oxygen machine: 0.4-0.7 atmosphere   (10liter oxygen machine:0.4-0.7atmosphere) The outlet pressure can be customized, up to 1.4- 4.0 atmosphere  (works with the hyperbaric oxygen chamber)
Large LCD Display & Remote Control	Yes
72 Hours/ Whole Night Running	Yes
Sound level	About 50dB
Weight	20Liter machine: 95 kg; 209.4 lbs (10Liter machine: 27 kg; 59.9 lbs )

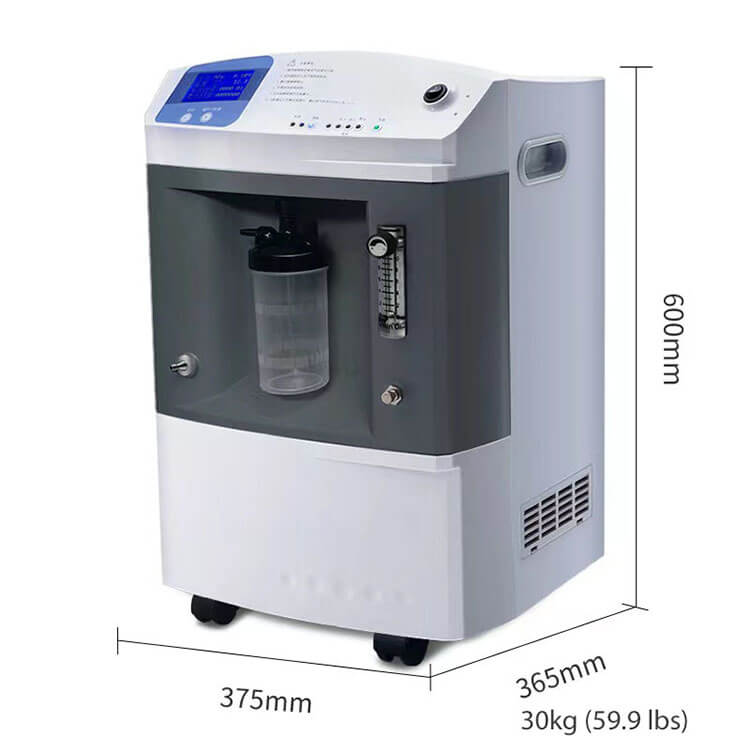

Dimension	20Liters machine: 81*44*67 cm; 31.8"x 17.3" x 26.3" (10Liters machine: 36*37*60 cm; 14.3"x 14.7" 23.6" )
Alarm Functions	Power failure alarm; High & low pressure alarm; High temperature alarm

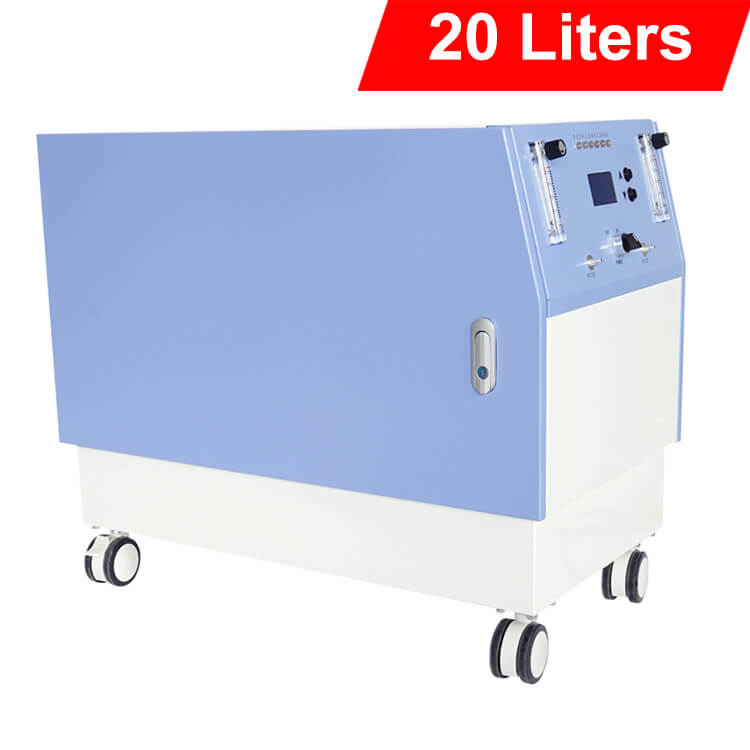

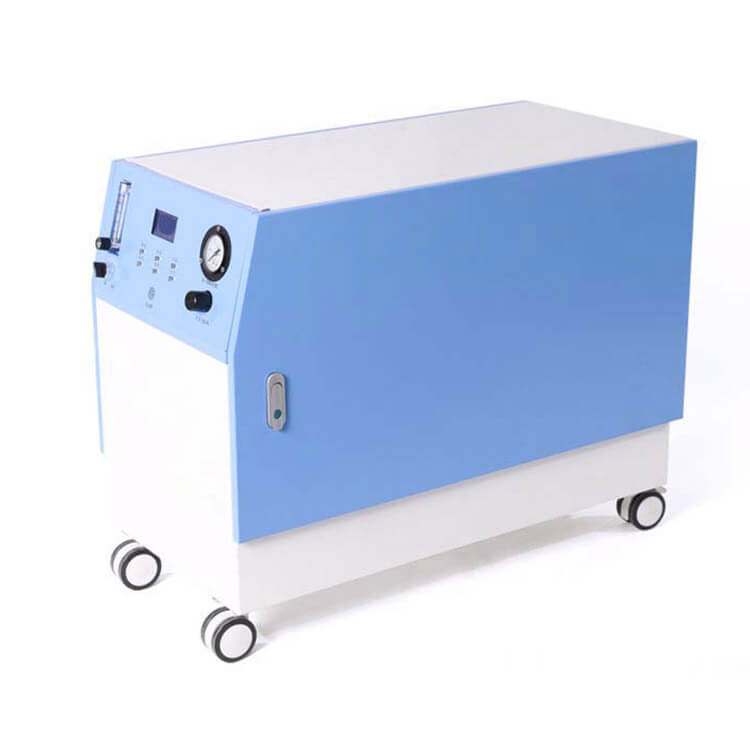

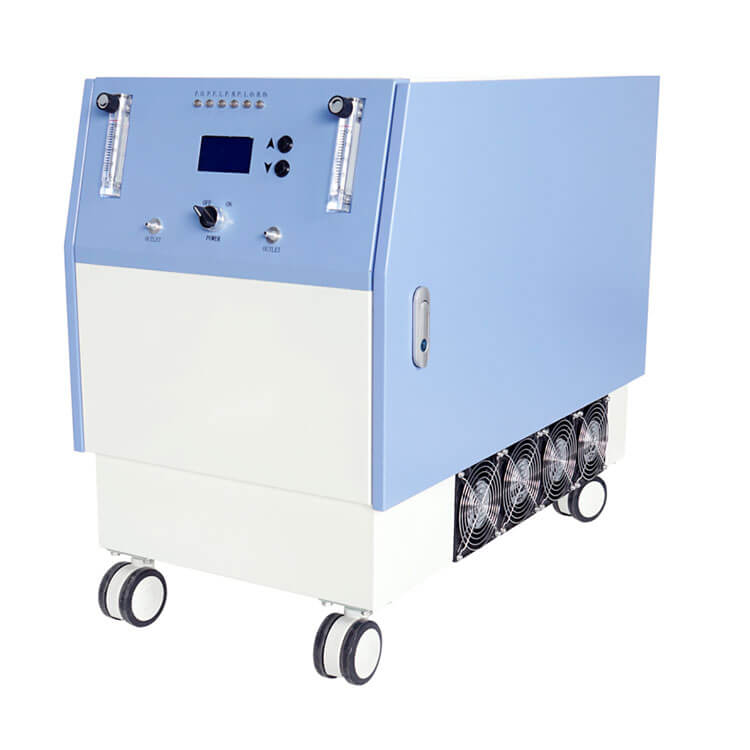

Powerful Medical 20LPM Oxygen Machine	Suit for hospital and home oxygen therapy use Suit for hyperbaric oxygen chamber use Support 4-5 people use at the same time
Power Rate	AC 110V/ 220V/ 230V, 50/60Hz
Power Consumption(W)	20 liter machine: 1100W ( 10 liter machine: 650W)
Warranty	3 years





Feature：

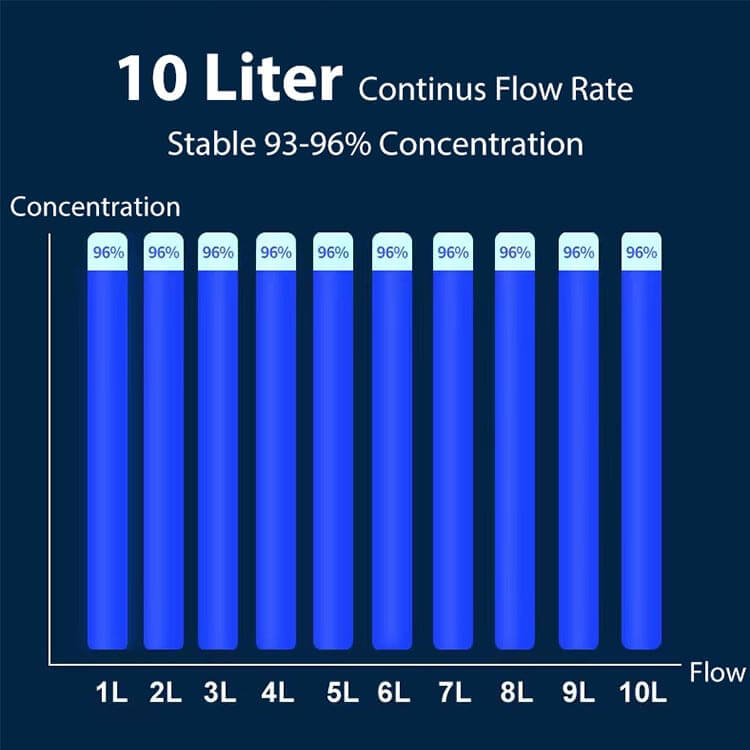

1，Above 93% Concentration for Medical Oxygen Therapy

In all gears (1-20 LPM), the oxygen concentration are above 93%, meet the need of hospital medical standard oxygen therapy.

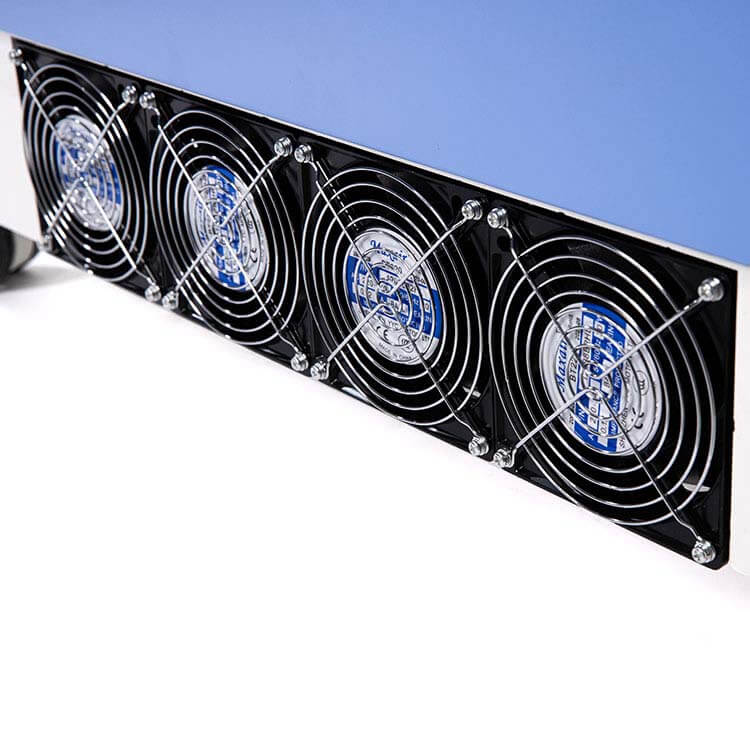

Innovative cooling technology to ensure 24/7/365 operation.

Simple operation functions and easy -to-read LCD display

Humidifier bottle with a pressure relief value of 6PSI, safer and more comfortable.

Four flexible castors with two brakes, easy to move or situate in any direction, safer and more convenient.



2，Good & Stable Quality

The 20LPM medical oxygen concentrators can supply 4-5 people simultaneously, with steady oxygen flowing out, safe and reliable,low cost, adjustable flow.

The key parts of 20 liter oxygen generator concentrators adopt anti-tiring and anti-aging design, and the planned life of the whole concentrator reaches up to 20 000 hours or 5 years.

With medical grade oxygen concentration above 93%, better treatment effect for patients with COPD pulmonary fibrosis .



3，For Medical Use

20 liter Continuous flow rate medical oxygen supplied by the concentrator is beneficial to cure the COPD disease or heart and blood vessel system chronic pulmonary system the brain and blood vessel system, chronic pulmonary tuberculosis and other oxygen lacking symptoms.

20L medical oxygen concentrator is a device that extracts oxygen from atmospheric air. It will typically be an electrically-powered molecular sieve (artificial zeolite) used to separate nitrogen from ambient air. It could be applied widely in the hospitals at all different level clinics, health centers and family nursing health care for the old person, pregnant women, mental workers and students.

(And the customized 20 LPM~ up to 1.4-4.0 atmosphere powerful oxygen concentrators can support to work with the hyperbaric oxygen chamber. )

If the customization service is in need, please let me know before placing the order, need to quote additionally.





Why Us?



Medical Grade Oxygen Supply

Steady continuous flow rate of 1-20 L/min with a constant O2 concentration of 93%±3%, sufficient flow oxygen.



24/7 Continuous Operation

Let you breathe confidently around the clock with continuous oxygen support.

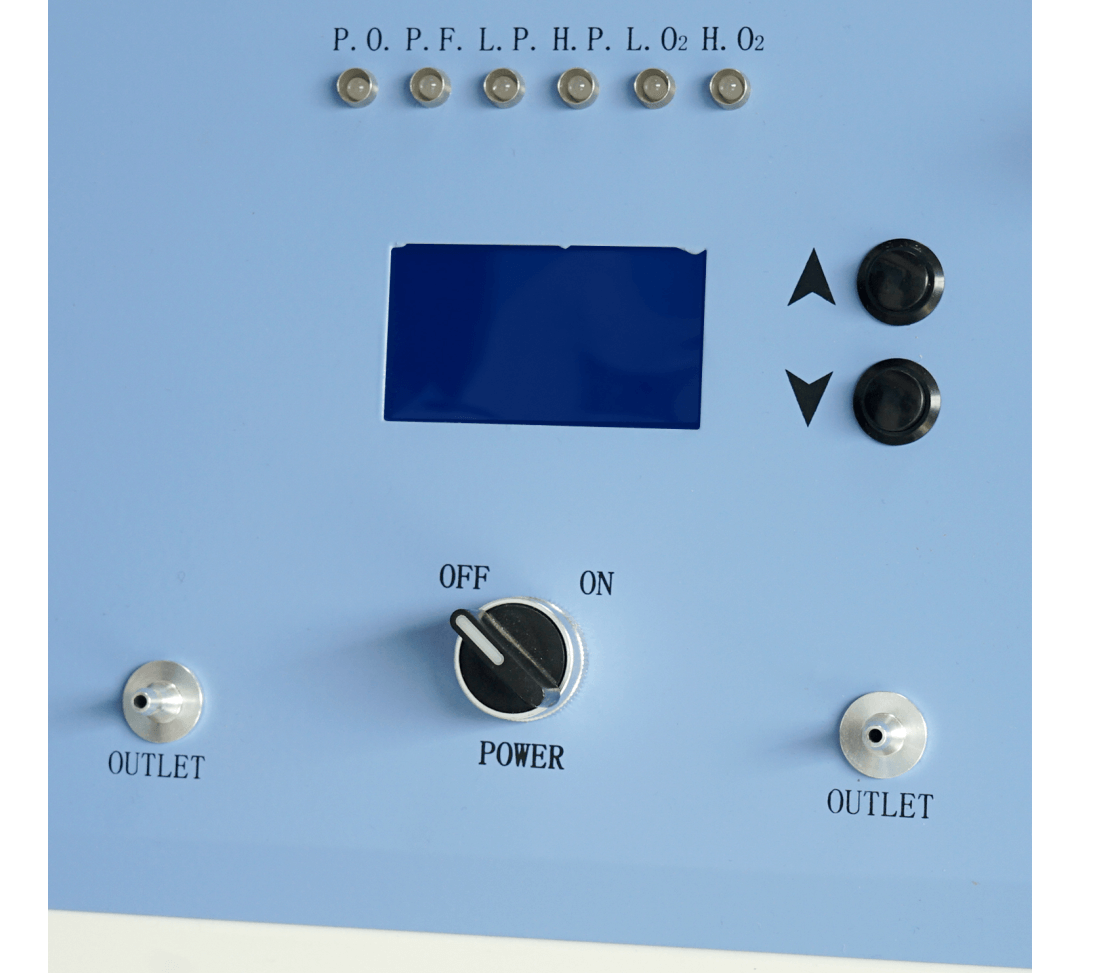

LCD Screen & Cooling System & Universal Wheels

Crystal clear display to show real-time machine performance data, and the advanced cooling system supports this powerful medical machine to keep using 72 hours.

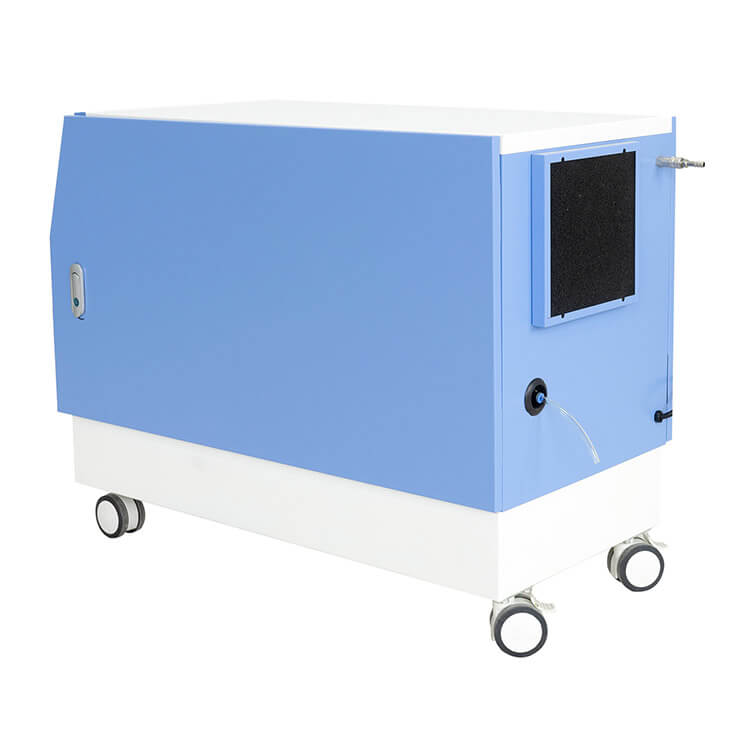

Equipped with universal wheels, the oxygen concentrator is very easy to move.



Comprehensive and Intelligent Alarm System

Alarm for power failure, irregular pressure & low O2 levels.



Top Storage Box Design

The storage box on the top can store oxygen tubing, air filters, etc., effectively saving space.

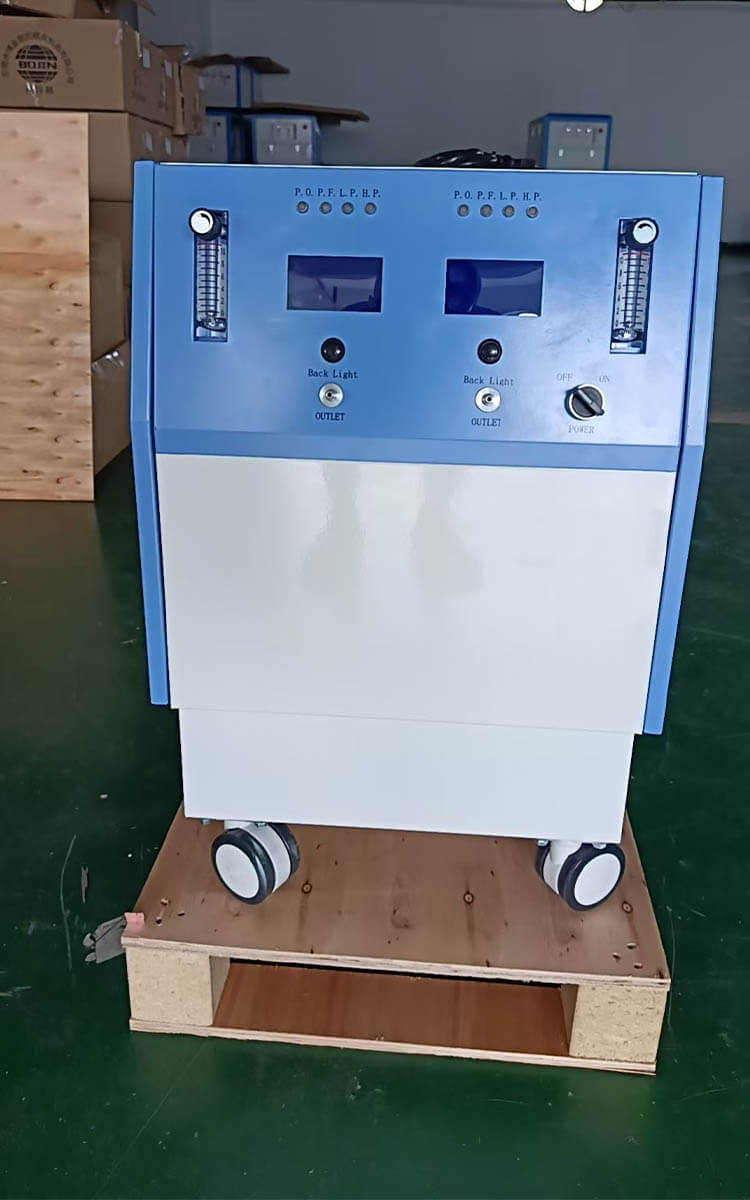

Dual Flow Design (Optional )

The dual-flow design makes it available to take oxygen for 2 users at the same time.

(If need to supply the oxygen to more than 2 people, then oxygen flow distributor needs to buy additionally.)



Package Included:

- 1 x 20LPM Oxygen Concentrator

- 1 x Power cord

- 1 x Remote Control

- 1 x Oxygen Tube

- 1 x Headset Oxygen Inhaler

- 1 x Nasal Suction Oxygen Inhaler

- 1 x 3m Rubber Hose (including Water Trap)

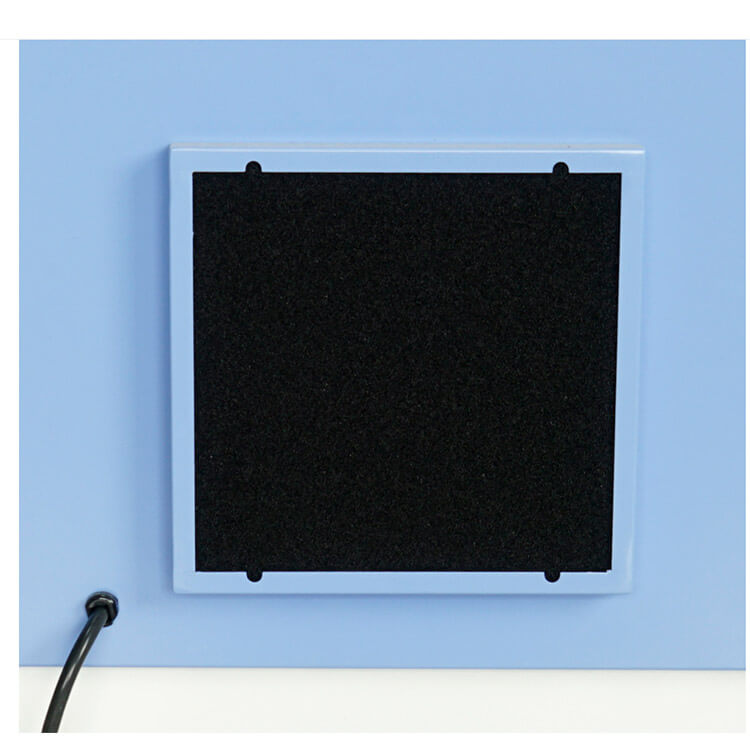

- 1 x Inlet Filter

- 1 x Oxygen generator fuse

- 1 x User Manual

- 1 x Start Guide

- 1 x Product Warranty Card

- 1 x QC Certificate
